ALE8508 Aluminum Profiles for Corner & Edge LED Connections: Seamless Surface Transitions for Architectural Interior Lighting

Modern spatial concepts rely heavily on continuous light lines that traverse complex geometric intersections. When lighting strips cross internal corners, wall-to-ceiling boundaries, or cabinetry junctions, traditional mounting methods often reveal raw metal edges, visible wiring, or uneven illumination gaps.

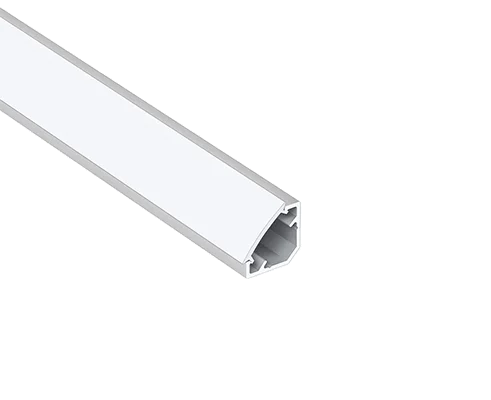

Manufactured by JECA DECOR, Model ALE8508 LED Profiles for Connections provides architects, lighting designers, and installation teams with a compact 11mm × 11mm corner housing engineered specifically for 90-degree surface transitions and edge joinery across walls, floors, ceilings, and custom furniture units.

Technical Specification Matrix

Key Functional Advantages & Design Highlights

• Compact 11mm × 11mm Geometry: The micro-profile dimensions allow clean mounting inside narrow 90-degree corners, cabinet undersides, and wall recesses without protruding into functional living spaces.
• Thermal Management: Engineered using extruded 6063 aluminum alloy with a 1.0mm wall thickness, the channel serves as a heat sink that disperses thermal energy from LED tape, extending diode operating life.
• Surface Protection: Treated with an anodized or powder-coated 1M finish, ALE8508 resists oxidation, wear, and chemical degradation.
• Diffused Optics: The clip-in opal diffuser cover smooths out point-source glare, casting a continuous 45-degree beam across corner intersections.

B2B Procurement & Manufacturing Options

JECA DECOR operates out of Foshan, China, offering global distributors and project contractors flexible production terms:

• MOQ Threshold: Low initial requirement of 200 pieces per batch.
• Customization Scope: Precision cutting up to 3000mm, special color matching, custom profile gauges, and custom optic covers.
• Delivery & Fulfillment: Fast manufacturing cycles of 7 to 25 days, backed by EXW, FOB, CIF, or DDP shipping terms.

Why Choose JECA DECOR?

Established in 2012, JECA DECOR is an ISO-certified manufacturer holding multiple national patents for decorative profile systems. Our production facility enforces strict quality control across every extrusion, surface finishing, and packaging phase to ensure compliance with European and American building standards.

Frequently Asked Questions (FAQ)

Where is Model ALE8508 most effectively deployed?

Model ALE8508 is designed for internal 90-degree corners, wall-to-ceiling perimeter junctions, kitchen cabinet undersides, and decorative wall panel joints.

Can profile length and surface colors be customized?

Yes. JECA DECOR provides cut-to-length services (standard length is 3000mm) as well as custom anodized or powder-coated color options to match project palettes.

How are profiles protected during international transit?

Each bar is wrapped in a protective film and packed into heavy-duty corrugated export cartons to prevent bending or scratching.
